This will consist of UDM PRO, Pro Max 16 PoE, x2 Unifi APs, x4 security cams, Unifi CyberSecure, x3 Mac Minis, x3 VOIP phones, and a printer. Thats about it.
Rack Related Parts list:
(always buy from Ubiquiti when in stock)
- Tecmojo 20U Open Frame Network Rack
- Unifi Pro Max 16 PoE
- Unifi Dream Machine Pro
- CyberPower CP1500PFCLCD
- StarTech 8 Outlet Horizontal 1U Rack Mount PDU Power Strip
- Nexxt 24 port keystone panel 1u
- Navepoint 1U Rack Mount Cable Management Panel
- 10GTEK 10GBase-SR SFP+ LC Transceiver, 10G 850nm Multimode SFP Module
- 10Gtek 1.25/2.5/5/10G-T SFP+ to RJ45 CAT.6a Copper Transceiver
Here are some progress pics:

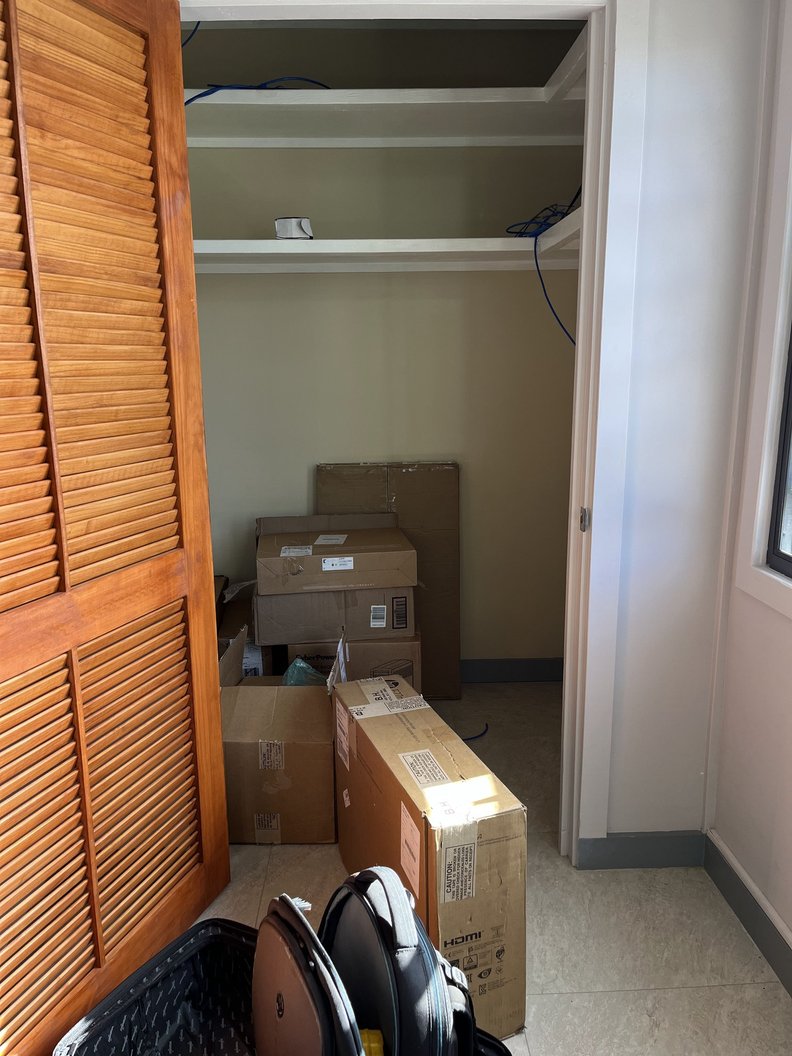

Yesterday morning first time taking inventory of what’s there.

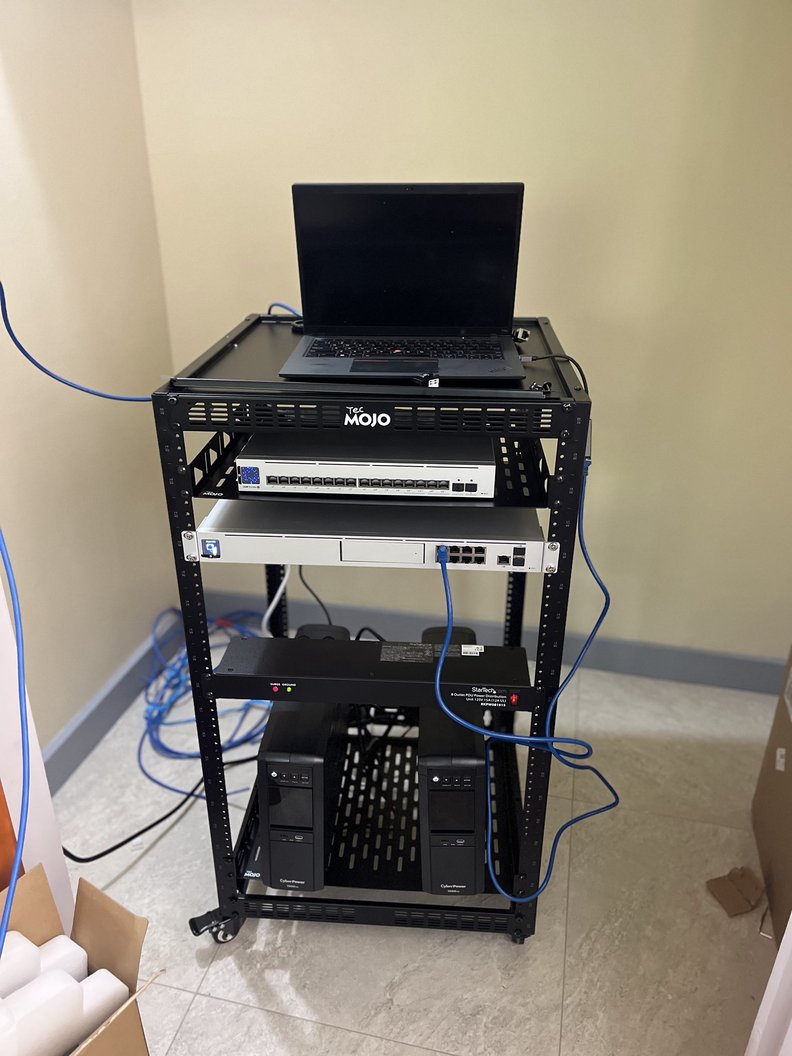

Later that day, assembled just enough to power on and test.
I’ll update some more later. Add some details for anyone curious or thinking about similar setups .
The UDM Pro setup is just so simple. It’s kinda like the Apple’s OS experience. Dumbed-down a bit, but because of that, it is really difficult to mess things up. Whereas on say pfSense, I’ve screwed myself over a few times with config in the beginning.
The UDM Pro is an extremely flexible unit: Router, firewall, switch, storage, cameras (Unifi only) and Unifi controller all-in-one.

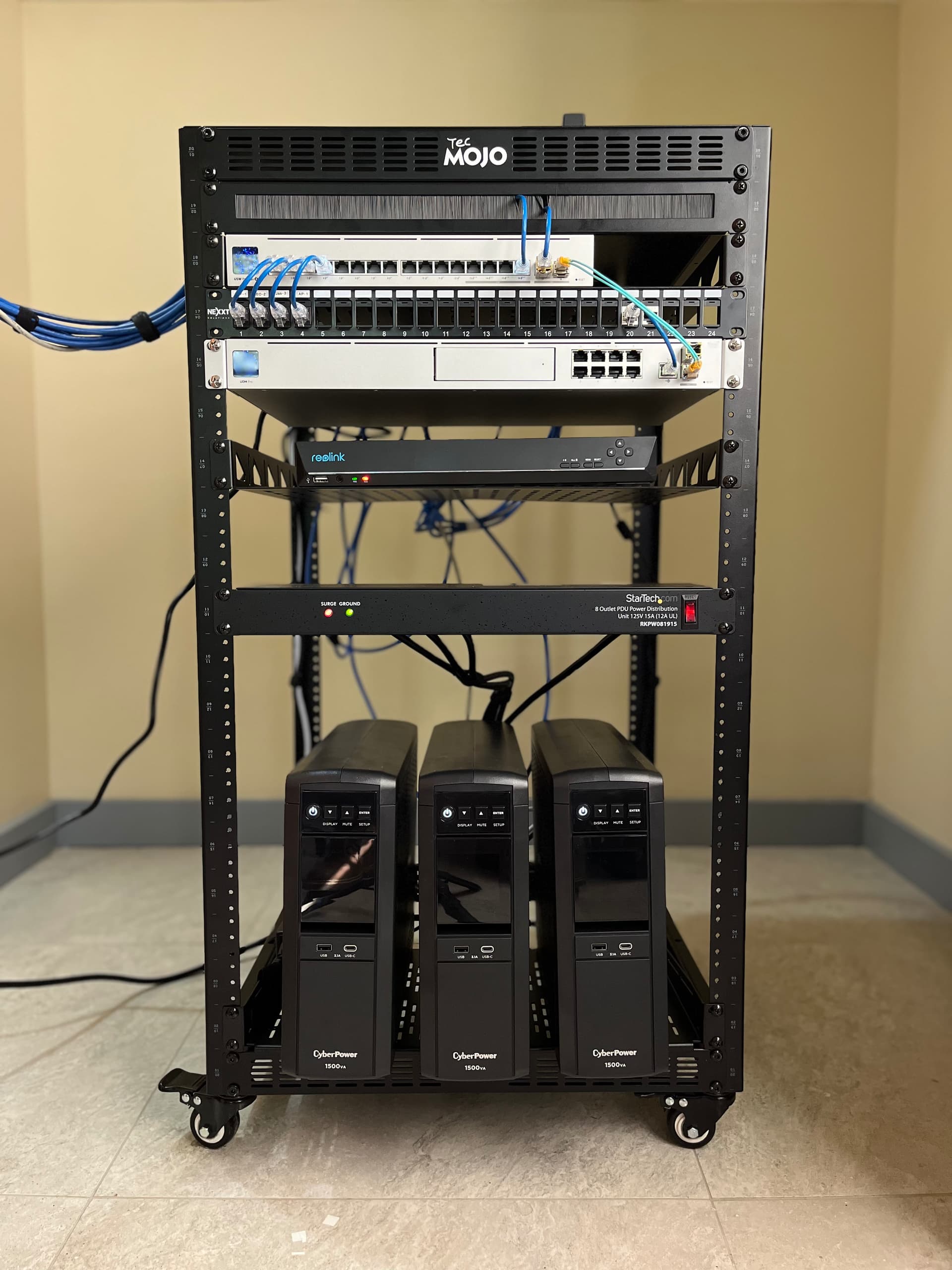

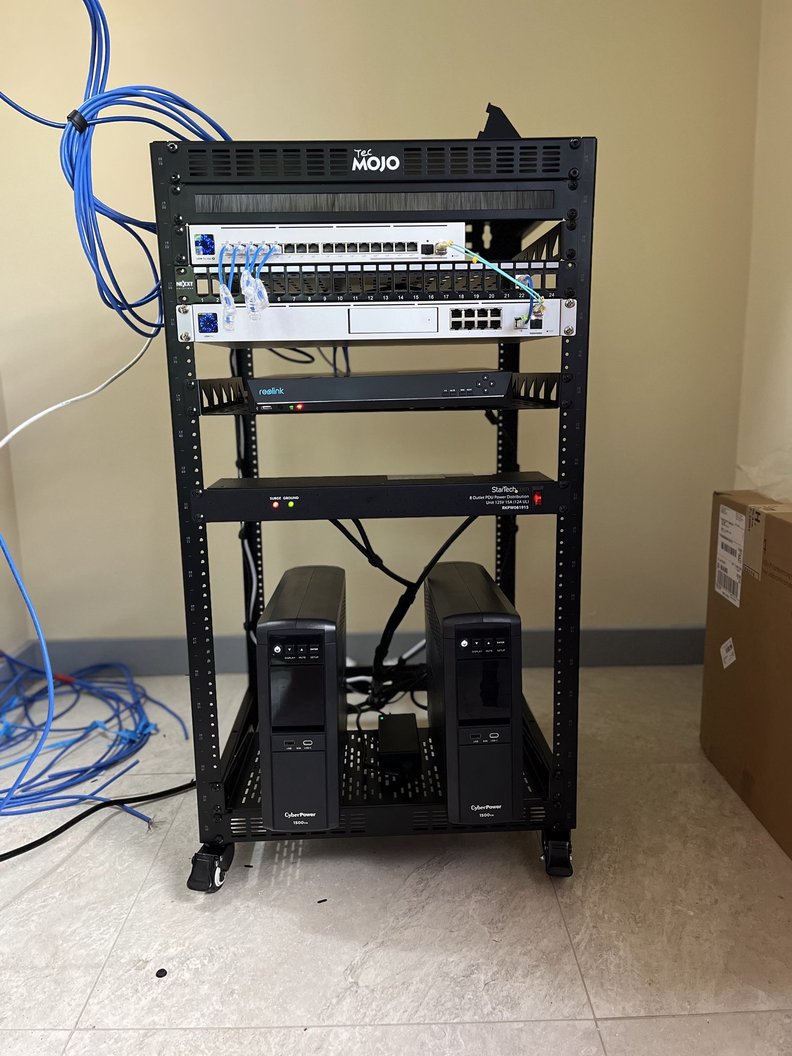

Update from yesterday:

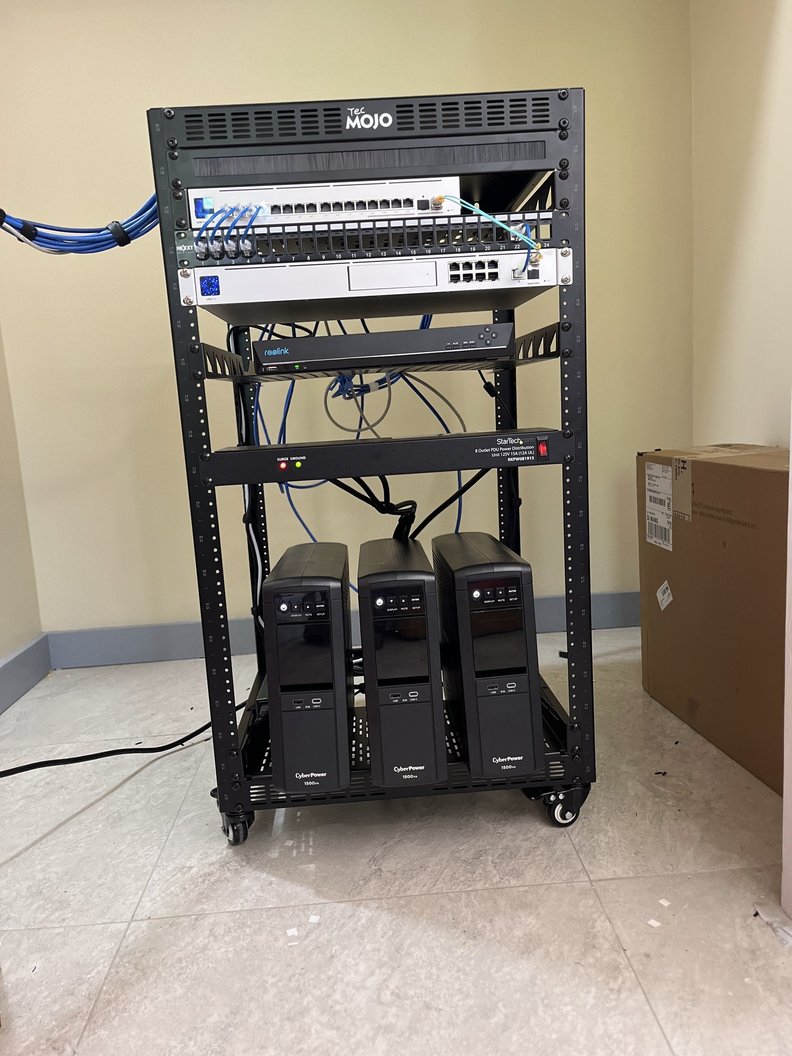

Update from this morning:
Have about 6 more switch ports to connect over the weekend. Then label everything, create hand over documention.
Update: today the 2nd ISP should be coming to install the backup internet. Once the last 6 or so cables are into the switch I can tidy up wires and begin to label everything.

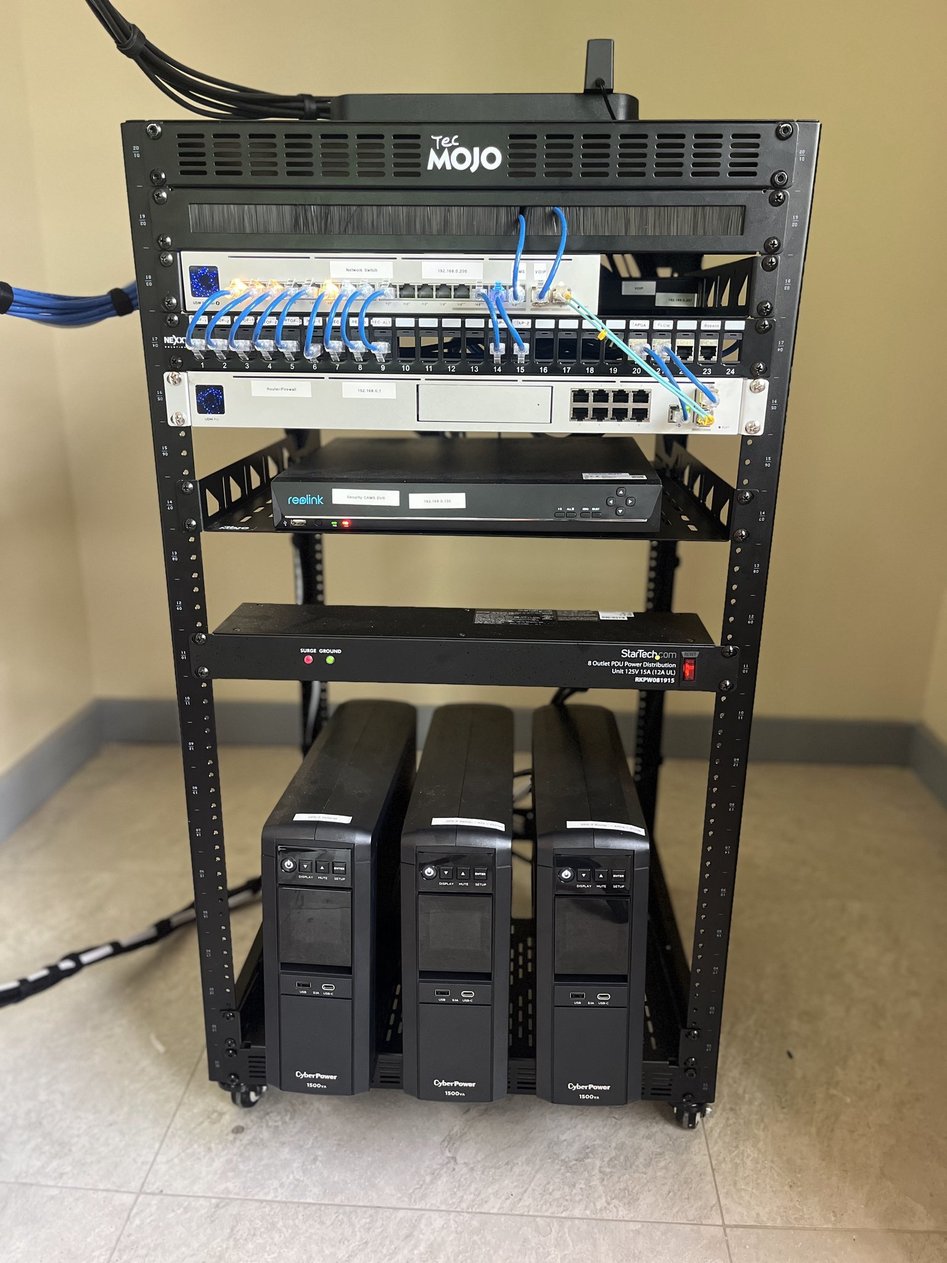

Network rack setup completed on Tuesday, 8th July 2025:
