SSH connection timeout

Linux Support
1

I am launching Ubuntu server on VmWare. My username is tadi@server1. On cmd I can get access the server on the same machine which uses windows OS. However, On the client side
when I try to connect using a different linux machine (laptop), "connection time out " error occurs.

  • Port 22 is listening
  • ssh is enabled
  • firewall allowed port 22

What is the case and how to solve it

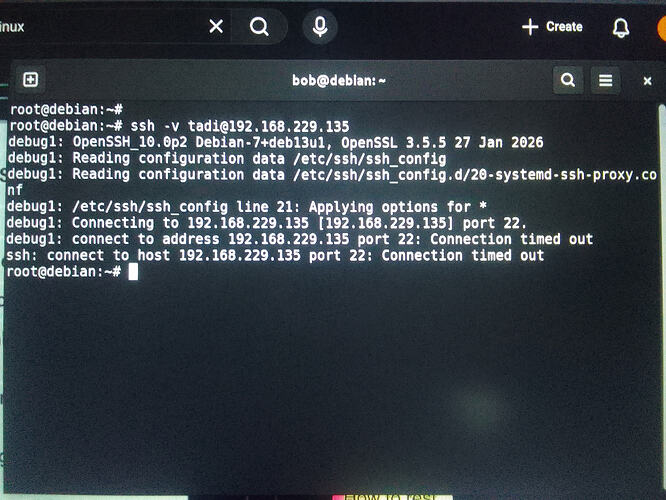

17749638949727948837868196986817
177496389497279488378681969868171920Ă—1440 742 KB

2 Likes
2

This looks like a network issue, not SSH.

Since you can connect from the Windows host but not from another machine, your VM is most likely using NAT networking in VMware.

In NAT mode, only the host can access the VM. Other devices on the network won’t be able to connect, which results in a connection timed out error.

How to fix this: Change the VM network adapter to Bridged:

VM Settings Network Adapter

Select Bridged (connected directly to physical network)

Then check the VM IP:

ip a

Make sure it’s on the same subnet as your laptop, then connect again:

ssh user@<vm-ip>

In NAT mode, external machines cannot access the VM directly unless port forwarding is configured.

Run ip a in the Ubuntu Terminal

3 Likes
Weekly Forum Summary
3

Edit: What he said, much less rambling than my explanation lol

If you need to stay on NAT for some reason, the other option is to set up port forwarding in VMware so that traffic hitting the Windows host on a specific port gets forwarded to the VM’s port 22.

3 Likes
4

Hey MarcelStevano, You are right I was on NAT. And when I changed it to Bridge connection, the IP address also changed. And on my another machine which is installed with Linux OS, notified me with “remote host identification has changed” and using ssh-keygen -f /home… I removed it and finaly got a remote access. Can you explain what just happened please?

1 Like
5

Hey Hydn, how are you my friend? How to forward port? I want to learn this.

1 Like
6

It depends on what router you have on your network.

For example if pfSense: pfSense Firewall 2.8: Install & Config – Settings Walkthrough. Or, maybe ISP router, etc.

Here you go:

1 Like
7

SSH stores a host key (a kind of fingerprint) in ~/.ssh/known_hosts and verifies it on every connection. When you switched from NAT to bridged, your VM effectively appeared as a different host (new IP / new identity), so the stored key no longer matched.

SSH flags this as a security warning to prevent potential man-in-the-middle attacks.

By removing the old entry with ssh-keygen -R you cleared the outdated key, allowing SSH to accept the new one. Nothing was broken , it was expected behavior

2 Likes
