Simple thermo-hygrometer using an Arduino Micro

Showcase
1

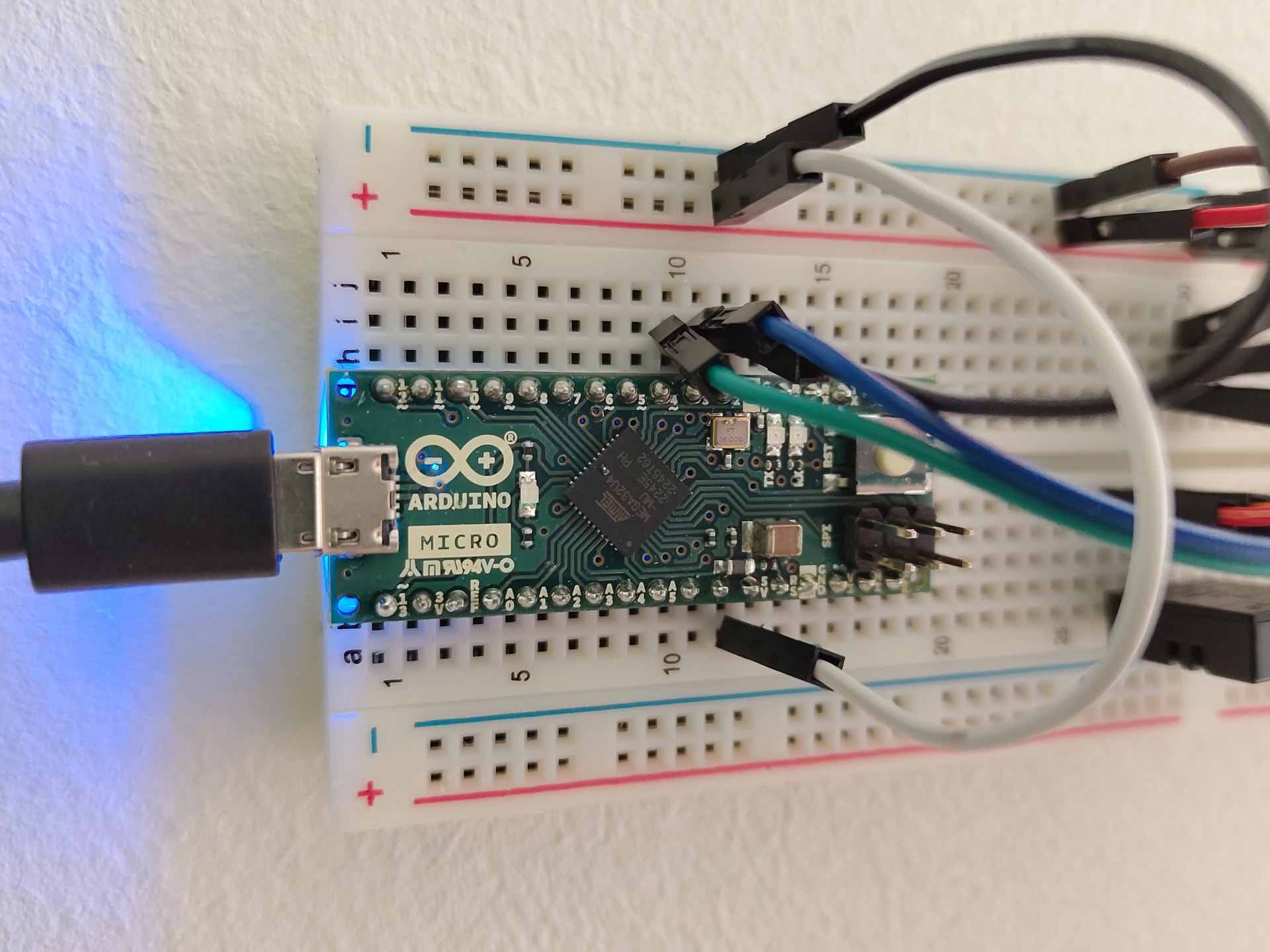

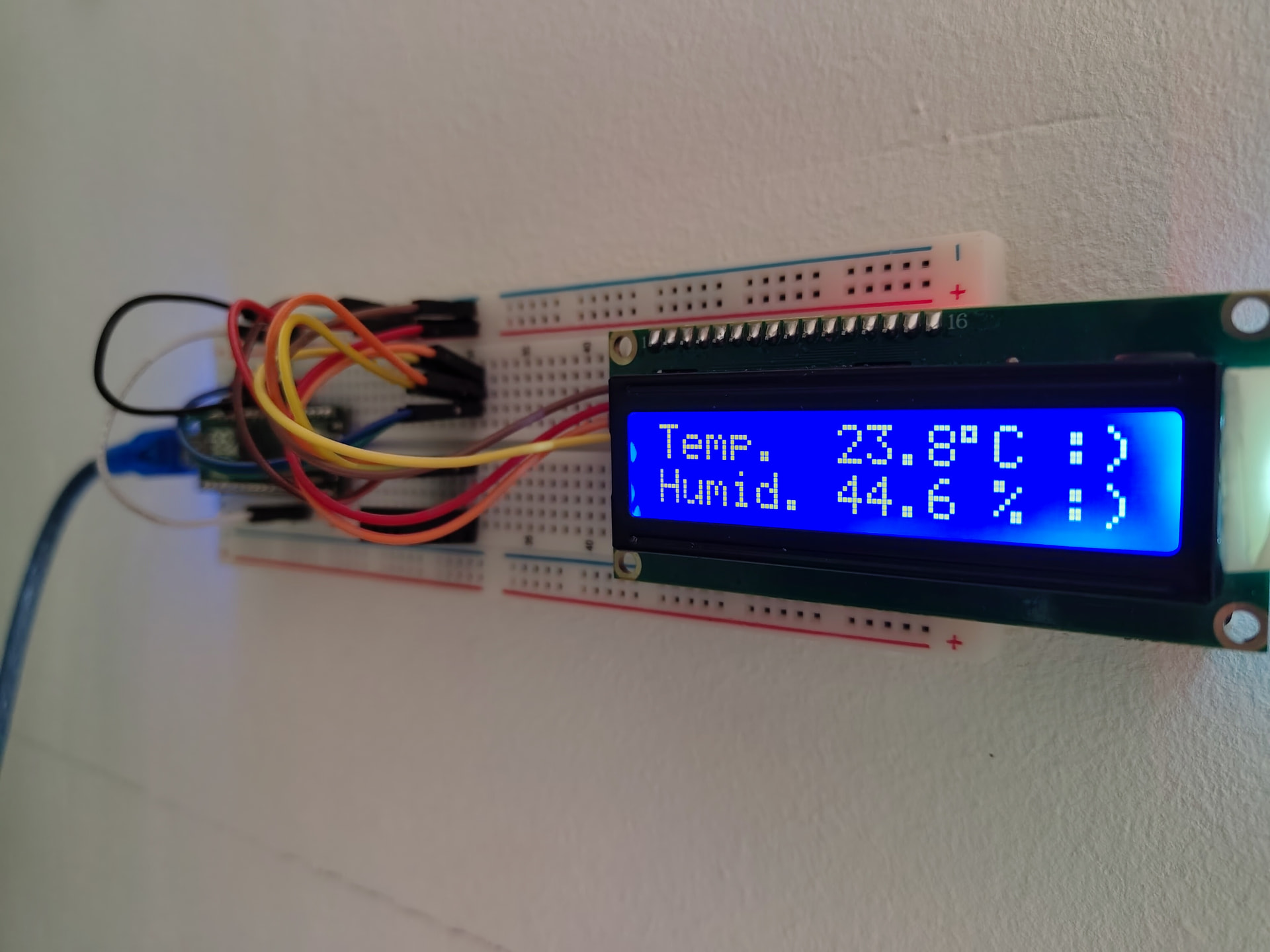

I made a very simple thermo-hygrometer using an Arduino Micro, Adafruit DHT20 sensor, and 16x2 LCD display recently. The latter two both use an I²C interface so obtaining readings and printing output to the LCD was rather trivial. Just a fun little project, and made me itch to endeavour onto more exciting and challenging projects. I’d love to hear things you’ve done with such electronics (and perhaps inspire me!).

IMG_20260823_122928746_HDR
IMG_20260823_122928746_HDR1920×1440 283 KB

IMG_20260822_124434256
IMG_20260822_1244342561920×1440 415 KB

I wrote a blog post as well if any one wants more details.

9 Likes
2

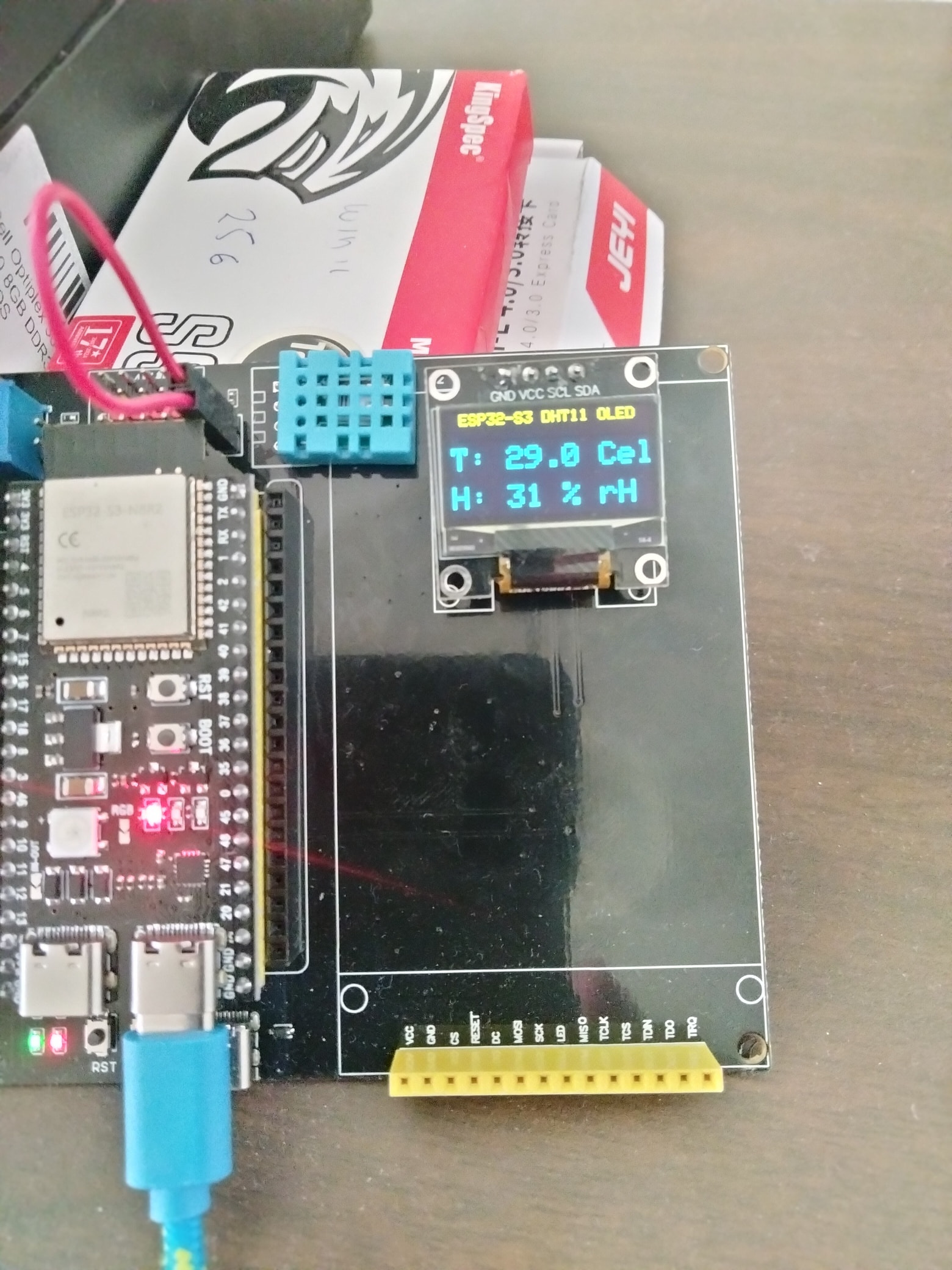

nice … you can do similar with the oled .96 display using ssd1306.

IMG20260823111600.resized
IMG20260823111600.resized1560×2080 519 KB

8 Likes
3

Looks like we have a couple of very adept hardware people @andreas, @pavlos!

Nicely done and nice to know!

:slight_smile:

5 Likes
4

the pi able to do that too ?

3 Likes
5

yes, on any pi (3,4,5) enable i2c, then connect

  • LCD 1602 display with GND, VCC, SDA, and SCL
  • DHT11 sensor to a GPIO pin, 3.3V, and GND

sample code as text file.

sample.txt (1.6 KB)

6 Likes
6

Presumably a DHT20 or DHT22 would work as well in that case?

3 Likes
7

yes, I just have the DHT11.

4 Likes
